pipecat/examples/deployment/modal-example

Deploying Pipecat to Modal.com

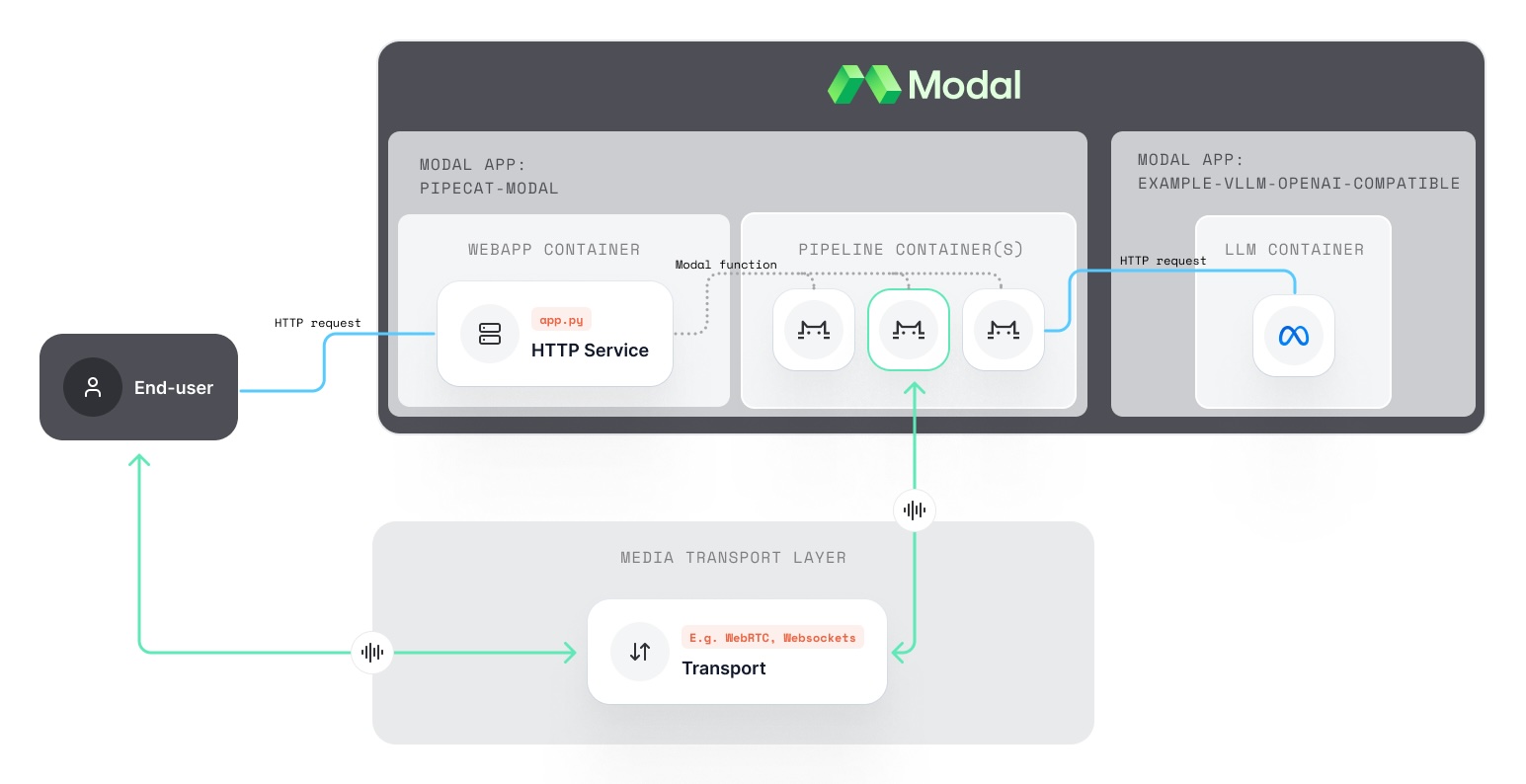

Deployment example for modal.com. This example demonstrates how to deploy a FastAPI webapp to Modal with an RTVI compatible /connect endpoint that launches a Pipecat pipeline in a separate Modal container and returns a room/token for the client to join. This example also supports providing a parameter to the /connect endpoint for specifying which Pipecat pipeline to launch; openai, gemini, or vllm. The vllm pipeline points to a self-hosted OpenAI compatible LLM, using a llama model (neuralmagic/Meta-Llama-3.1-8B-Instruct-quantized.w4a16), deployed to Modal.

Running this Example

Install the Modal CLI

Setup a Modal account and install it on your machine if you have not already, following their easy 3 steps in their Getting Started Guide

Deploy a self-serve LLM

1. Deploy Modal's OpenAI-compatible LLM service:

   git clone https://github.com/modal-labs/modal-examples
   cd modal-examples
   modal deploy 06_gpu_and_ml/llm-serving/vllm_inference.py


   Refer to Modal's guide and example for Deploying an OpenAI-compatible LLM service with vLLM for more details.

2. Take note of the endpoint URL from the previous step, which will look like:

   https://{your-workspace}--example-vllm-openai-compatible-serve.modal.run


   You'll need this for the bot_vllm.py file in the next section.

   Note: The default Modal LLM example uses Llama-3.1 and will shut down after 15 minutes of inactivity. Cold starts take 5-10 minutes. To prepare the service, we recommend visiting the /docs endpoint (https://<Modal workspace>--example-vllm-openai-compatible-serve.modal.run/docs) for your deployed LLM and wait for it to fully load before connecting your client.

Deploy FastAPI App and Pipecat pipeline to Modal

1. Setup environment variables

   cd server
   cp env.example .env
   # Modify .env to provide your service API Keys


   Alternatively, you can configure your Modal app to use secrets

2. Update the modal_url in server/src/bot_vllm.py to point to the url produced from the self-serve llm deploy, mentioned above.

3. From within the server directory, test the app locally:

   modal serve app.py


4. Deploy to production

   modal deploy app.py


5. Note the endpoint URL produced from this deployment. It will look like:

   https://{your-workspace}--pipecat-modal-fastapi-app.modal.run


   You'll need this URL for the client's app.js configuration mentioned in its README.

Launch your bots on Modal

Option 1: Direct Link

Simply click on the url displayed after running the server or deploy step to launch an agent and be redirected to a Daily room to talk with the launched bot. This will use the OpenAI pipeline.

Option 2: Connect via an RTVI Client

Follow the instructions provided in the client folder's README for building and running a custom client that connects to your Modal endpoint. The provided client provides a dropdown for choosing which bot pipeline to run.

Navigating your llm, server, and Pipecat logs

In your Modal dashboard, you should have two Apps listed under Live Apps:

1. example-vllm-openai-compatible: This App contains the containers and logs used to run your self-hosted LLM. There will be just one App Function listed: serve. Click on this function to view logs for your LLM.
2. pipecat-modal: This App contains the containers and logs used to run your connect endpoints and Pipecat pipelines. It will list two App Functions:
   1. fastapi_app: This function is running the endpoints that your client will interact with and initiate starting a new pipeline (/, /connect, /status). Click on this function to see logs for each endpoint hit.
   2. bot_runner: This function handles launching and running a bot pipeline. Click on this function to get a list of all pipeline runs and access each run's logs.

Modal + Pipecat Tips

• In most other Pipecat examples, we use Popen to launch the pipeline process from the /connect endpoint. In this example, we use a Modal function instead. This allows us to run the pipelines using a separately defined Modal image as well as run each pipeline in an isolated container.
• For the FastAPI and most common Pipecat Pipeline containers, a default debian_slim CPU-only should be all that's required to run. GPU containers are needed for self-hosted services.
• To minimize cold starts of the pipeline and reduce latency for users, set min_containers=1 on the Modal Function that launches the pipeline to ensure at least one warm instance of your function is always available.
• For next steps on running a self-hosted llm and reducing latency, check out all of Modal's LLM examples.
